External Drive Piezo Transducer (AC)



Part No. | Diameter Φ (mm) | Height (mm) | Max. Input Voltage (V) | Rated Voltage (VAC) | Min Sound Output (dBA) | Resonant Frequency (Hz) | Capacitance @ 1KHz (pF) | Operating Tempature (°C) | Housing | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|

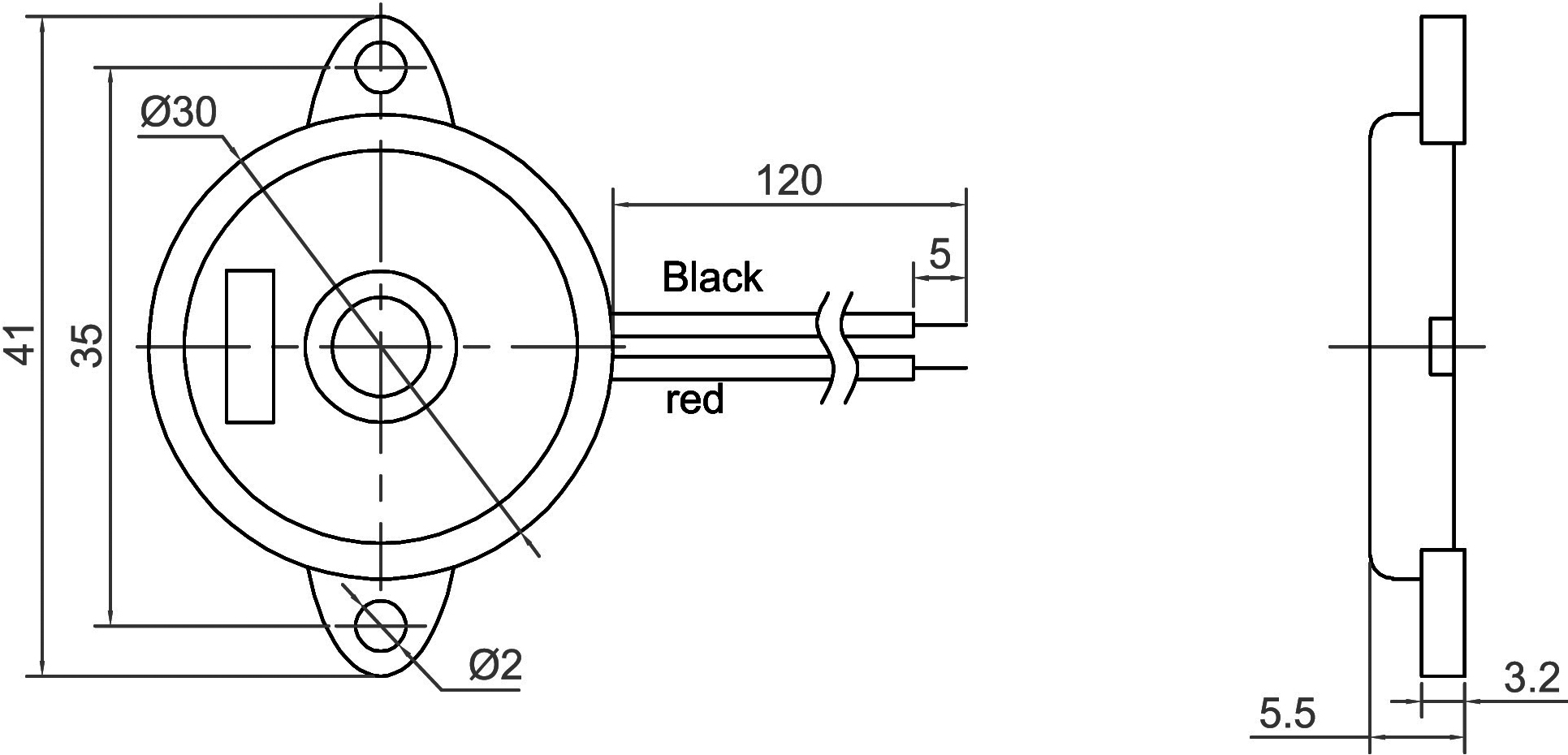

CPT3005I13BW | 30 | 5.5 | 30 Vrms | 12 Vp-p | 75 @ 10cm | 1300 | 45000 ± 30% | -20 ~ +60 | ABS | 3.5 |
Please contact us for the datasheet of this product.
