Mechanical Buzzer (DC)

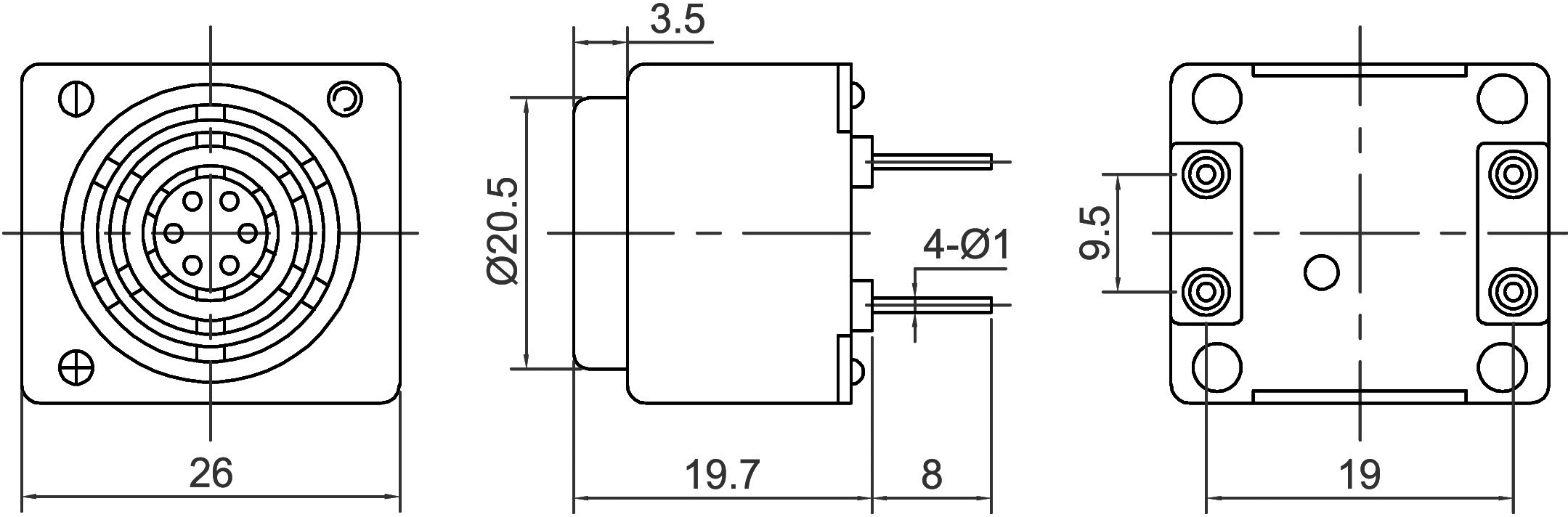

| Part No. | Length (mm) | Height (mm) | Operating Voltage (VDC) | Rated Voltage (VDC) | Max Rated Current (mA) | Min Sound Output (dBA) | Resonant Frequency (Hz) | Operating Tempature (°C) | Terminal | Housing | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CMEB2620H04BP | 26 X 26 | 19.7 | 7 ~ 16 | 12 | 50 | 95 @ 10cm | 400 ± 100 | -20 ~ +60 | Pin | ABS | 17 |
Please contact us for the datasheet of this product.
