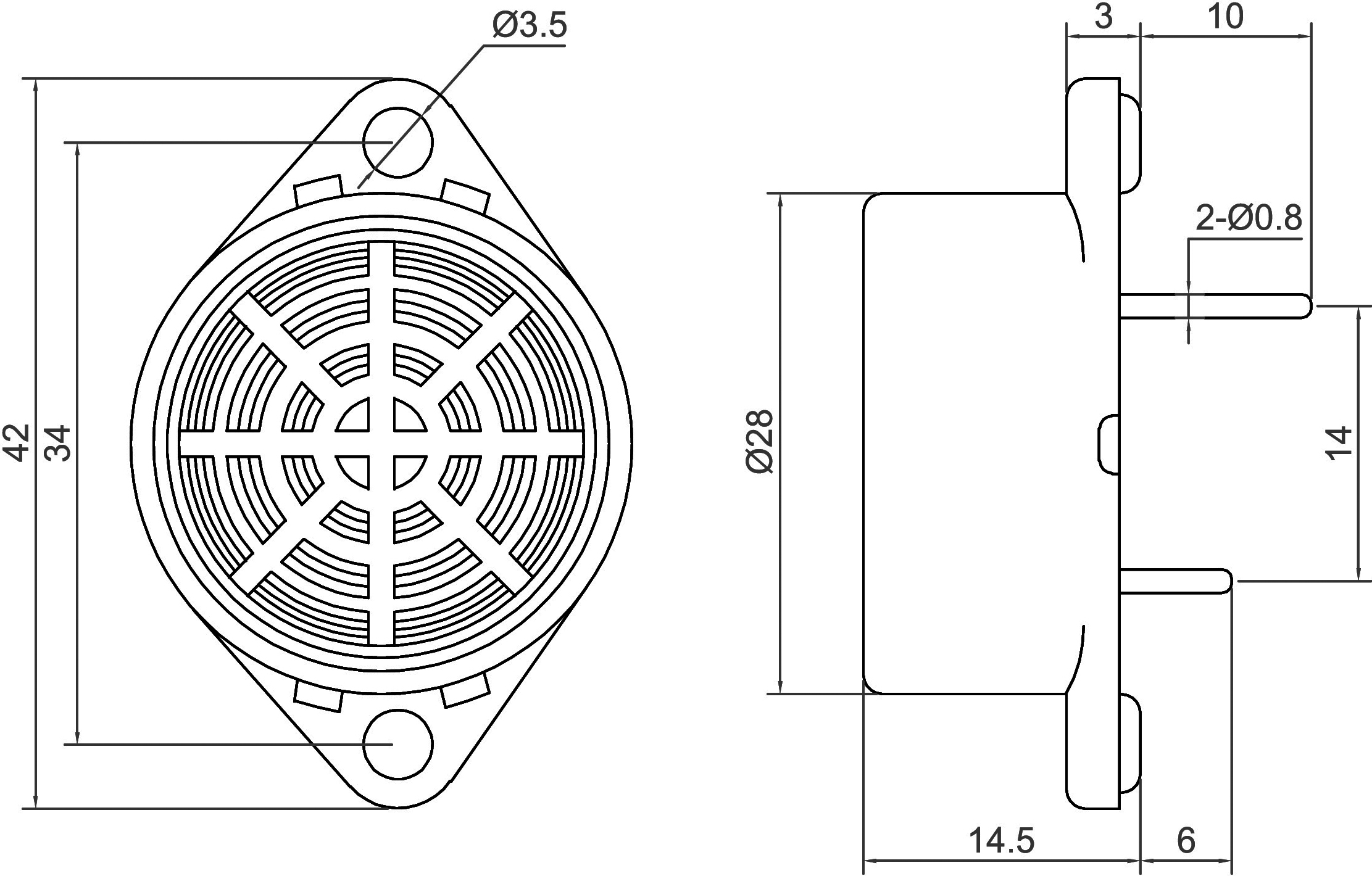

Magnetic Buzzer (DC)
| Part No. | Diameter Φ (mm) | Height (mm) | Operating Voltage (VDC) | Rated Voltage (VDC) | Max Rated Current (mA) | Min Sound Output (dBA) | Tone Nature | Resonant Frequency (Hz) | Operating Tempature (°C) | Terminal | Housing | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CMB2814GC28BP | 28 | 14.5 | 6 ~ 11 | 9 | 40 | 85 @ 10cm | Continuous | 2800 ± 200 | -20 ~ +60 | Pin | ABS | 17 |
Please contact us for the datasheet of this product.
